Prepare Reports/Papers with LaTeX

Easy and Beautiful !

Basics of LaTeX

Steps of generating pdf with LaTeX:

  1. Using an editor, emacs for example, to prepare a .tex file.
  2. Executing platex and dvipdfmx commands to comple .tex and generate .pdf.

Compiling commands for different Japanese encodings:

  1. utf8 - hello_latex_utf8.tex
  2. $ platex -kanji=utf8 hello_latex_utf8.tex
    $ dvipdfmx hello_latex_utf8.dvi

  3. sjis - hello_latex_sjis.tex
  4. $ platex -kanji=sjis hello_latex_sjis.tex
    $ dvipdfmx hello_latex_sjis.dvi

  5. euc - hello_latex_euc.tex
  6. $ platex -kanji=euc hello_latex_euc.tex
    $ dvipdfmx hello_latex_euc.dvi

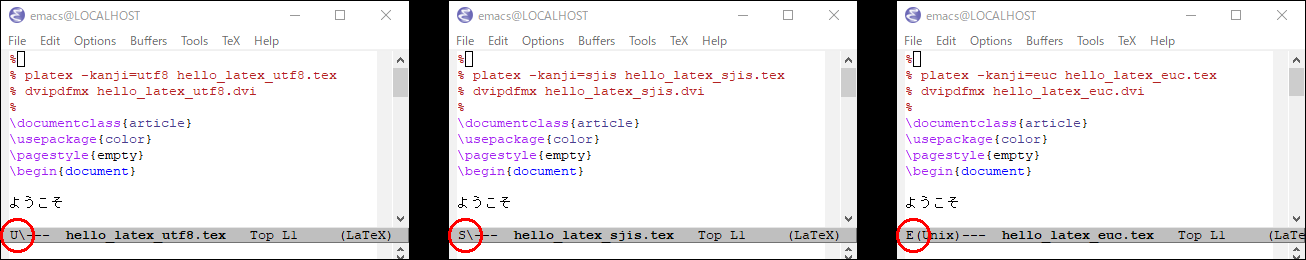

You can see the encodings U, S, and E in the left-bottom of emacs.


utf8 example: hello_latex_utf8.tex

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
%
% platex -kanji=utf8 hello_latex_utf8.tex           <-- tex to dvi
% dvipdfmx hello_latex_utf8.dvi                     <-- dvi to pdf
%
\documentclass{article}
\usepackage{color}
\pagestyle{empty}
\begin{document}

ようこそ

{\LaTeX} による文書作成

李 亜民

Hello, \LaTeX

\vspace{2mm}

Centering:

\begin{center}

ようこそ

{\LaTeX} による文書作成

李 亜民

Hello, \LaTeX

\end{center}

\vspace{2mm}

Fonts:

\begin{center}

ようこそ

{\gtfamily{{\LaTeX} による文書作成}}

李 亜民

{\sf{Hello, \LaTeX}}

\end{center}

\vspace{2mm}

Sizes:

\begin{center}

{\Huge{ようこそ}}

\vspace{2mm}

{\Large\gtfamily{{\LaTeX} による文書作成}}

\vspace{2mm}

{\LARGE{李 亜民}}

\vspace{2mm}

{\large\sf{Hello, \LaTeX}}

\end{center}

\vspace{2mm}

Formula:

{\huge
$$\displaystyle \sum_{k=0}^{n-1}2^k= \ ?$$
}

\vspace{2mm}

Color:

{\huge
{\color{red}
$$\displaystyle \sum_{k=0}^{n-1}2^k= \ ?$$
}
}

\end{document}

Compile and generate pdf:

$ platex -kanji=utf8 hello_latex_utf8.tex
$ dvipdfmx hello_latex_utf8.dvi

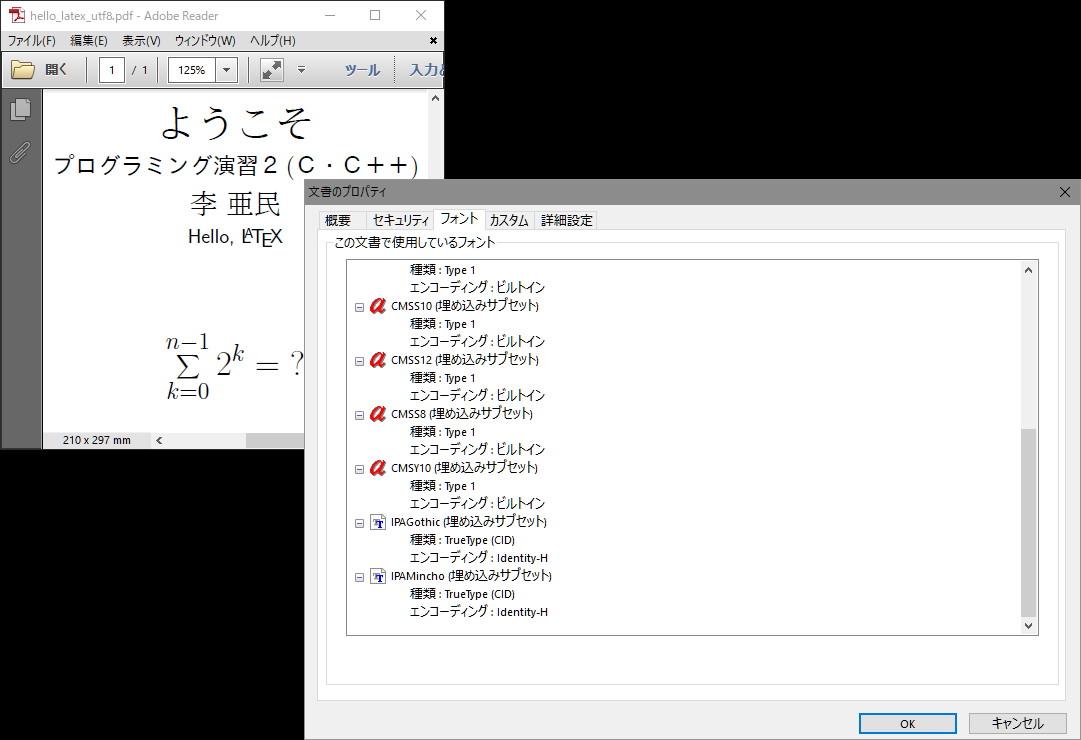

Generated pdf:

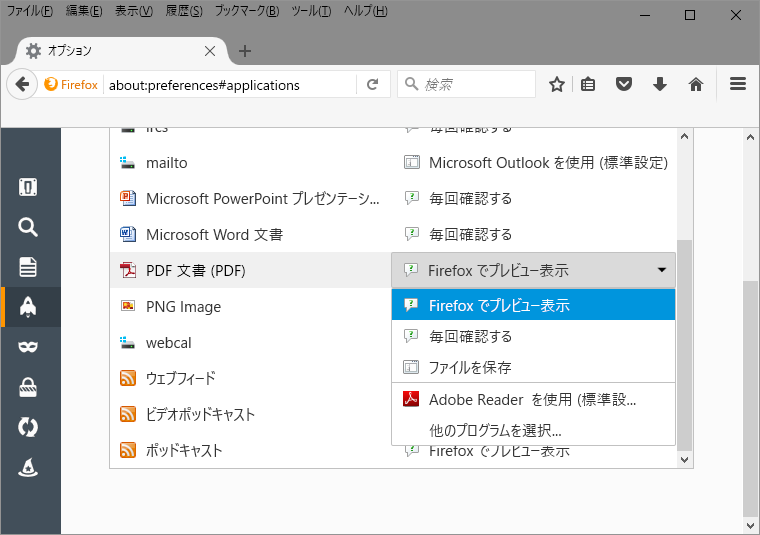

If no pdf showed here, please enable the pdf preview for your browser. The following shows the method for firefox.


LaTeX codes, symbols, and formulas

latex_formula.tex

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
%
% platex -kanji=utf8 latex_formula.tex
% dvipdfmx latex_formula.dvi
%
\documentclass{article}
\pagestyle{empty}
\begin{document}

\begin{enumerate}

\item You can write program codes like this:

\begin{verbatim}
/*
 * C program that says "Hello, World!" (hello_world.c)
 */
#include <stdio.h>    // needed to perform IO operations

int main() {                 // program entry point
  printf("Hello, World!\n"); // say Hello, World!
  return 0;                  // terminate main()
}                            // end of main function
\end{verbatim}

\item Symbols and formulas:

  $\sum_{k=0}^{n-1}2^k= \ ?$ and
  $\displaystyle \sum_{k=0}^{n-1}2^k= \ ?$

  Assume that the initial vertical velocity is 0 at time 0,
  and $g=9.8$ is the gravitational acceleration.
  The falling vertical velocity $v_y$ at time $t$ is

  $$v_y=gt$$

  The falling vertical distance $s$ at time $t$ is

  $$s=\int_0^tv_y\ dt=\int_0^tgt\ dt=\frac{1}{2}gt^2$$

  $$(x+y)^i=\sum_{j=0}^{i}\left(
  \begin{array}{c} i \\ j \end{array}
  \right)x^{i-j}y^{j}$$

  $$\left(\begin{array}{c} i \\ j \end{array} \right)
  = C_j^i = \,_iC_j = \frac{i!}{j!\,(i-j)!}$$

  $$\left(\begin{array}{c} i \\ j+1 \end{array} \right)
  = \frac{i!}{(j+1)!\,(i-(j+1))!}
  = \left( \begin{array}{c} i \\ j \end{array} \right)(i-j)\,/\,(j+1)$$

  $\left(\begin{array}{c} i \\ 0 \end{array} \right) = 1$,
  we can calculate $\left(\begin{array}{c} i \\ j+1 \end{array} \right)$
  from $\left(\begin{array}{c} i \\ j \end{array} \right)$
  for $j=0,1,\ldots,i$.

\end{enumerate}
\end{document}

Compile and generate pdf:

$ platex -kanji=utf8 latex_formula.tex
$ dvipdfmx latex_formula.dvi

Generated pdf:

LaTeX tables

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
%
% platex -kanji=utf8 latex_tables.tex
% dvipdfmx latex_tables.dvi
%
\documentclass{article}
\pagestyle{empty}
\begin{document}

Table.~\ref{align} shows an example of table.

\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{align}}}
    \begin{tabular}[t]{l|c|r}\hline
      left & center & right\\\hline
      lef  & cente  & righ \\\hline
      le   & cent   & rig  \\\hline
      l    & cen    & ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}

Table.~\ref{alignment} shows another example of table.

\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{alignment}}}
    \begin{tabular}[t]{|l|c|r|}\hline
      left & center & right\\\hline\hline
      lef  & cente  & righ \\\hline
      le   & cent   & rig  \\\hline
      l    & cen    & ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}

Table.~\ref{multiple} shows a table where ``hello2'' takes two columns.

\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{multiple}}}
    \begin{tabular}[t]{|l|c|r|}\hline
      \multicolumn{2}{|c|}{hello2} & right\\\hline\hline
      left & center & right\\\hline\hline
      lef  & cente  & righ \\\hline
      le   & cent   & rig  \\\hline
      l    & cen    & ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}

A table without title:

\begin{tabular}[t]{|l|c|r|}\hline
  left & center & right\\\hline\hline
  lef  & cente  & righ \\\hline
  le   & cent   & rig  \\\hline
  l    & cen    & ri   \\\hline
\end{tabular}

\end{document}

Compile and generate pdf:

$ platex -kanji=utf8 latex_tables.tex
$ dvipdfmx latex_tables.dvi

Generated pdf:

Include figures to your LaTeX

Generate eps (vector-based) file

  1. Use tgif to draw a figure (obj and eps)
  2. Or use Adobe illustrator to generate eps file
  3. When you plot data to graph, use gnuplot

Screen-shot of tgif:


It generate an eps file. It is better to convert eps to pdf. Then, include pdf to tex:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
%
% platex -kanji=utf8 -shell-escape latex_figure.tex
% dvipdfmx latex_figure.dvi
%
\documentclass{article}
\usepackage[dvipdfmx]{graphicx}
\pagestyle{empty}
\begin{document}

Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics{figs/tgif_sample.pdf}
    \caption{Figure example{\label{sample}}}
  \end{center}
\end{figure}

Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics[width=0.92\textwidth]{html/figs/tetris3d.pdf}
    \caption{Blocks of 3D Tetris{\label{tetris3d}}}
  \end{center}
\end{figure}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics{figs/connectivity.pdf}
    \caption{Blocks of 3D Tetris{\label{connectivity}}}
  \end{center}
\end{figure}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\end{document}

Compile and generate pdf:

$ platex -kanji=utf8 -shell-escape latex_figure.tex
$ dvipdfmx latex_figure.dvi

Generated pdf:

Download figures and put them in the figs folder.

tgif_sample.obj; open it with tgif
tgif_sample.eps; generated by tgif

tetris3d.obj; open it with tgif
tetris3d.eps; generated by tgif

connectivity.gnu; compile it with gnuplot, see next section
results.txt; data file for connectivity.gnu
connectivity.eps; generated by gnuplot
The epstopdf command converts eps to pdf:
$ epstopdf tgif_sample.eps
$ epstopdf tetris3d.eps
$ epstopdf connectivity.eps

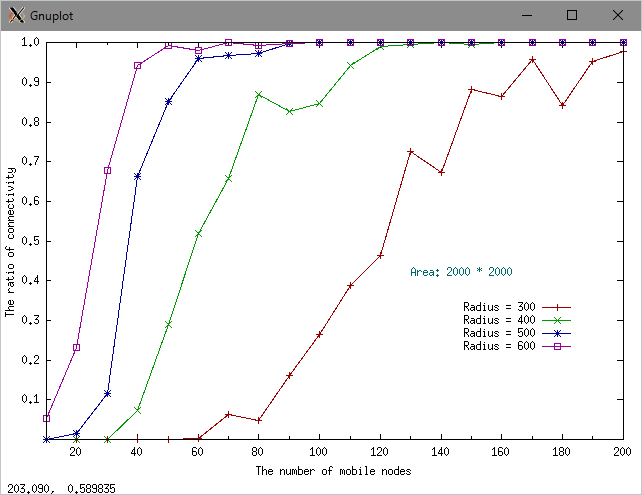

Plot vectored graph with gnuplot

The following gnu reads results.txt (data) and plots the data with curves.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
#
# gnuplot connectivity.gnu
#
set xlabel "The number of mobile nodes"
set ylabel "The ratio of connectivity"
set format x "%g"
set format y "%1.1f"
set xrange [10:200]
set yrange [0:1.0]
set xtics 20, 20, 200
set ytics 0.1, 0.1, 1.0
set mxtics 2
set key at 185, 0.35
set border linewidth .5 linecolor rgb '#000000'
#set tics scale 0.75
set style line 1 lt rgb "#990000" lw 1
set style line 2 lt rgb "#009900" lw 1
set style line 3 lt rgb "#000099" lw 1
set style line 4 lt rgb "#990099" lw 1
set label "Area: 2000 * 2000" at  130.4, 0.42 textcolor rgb "#006666" font "Helvetic, 16"

plot 'results.txt' using 1:2 title "Radius = 300" with linespoints ls 1, \
     'results.txt' using 1:3 title "Radius = 400" with linespoints ls 2, \
     'results.txt' using 1:4 title "Radius = 500" with linespoints ls 3, \
     'results.txt' using 1:5 title "Radius = 600" with linespoints ls 4

pause -1 "Type return to continue"

set size 0.97, 1.0
set terminal postscript eps enhanced color font 'Helvetica,16'
set output "connectivity.eps"
replot

results.txt:

 #N   r=0.3   r=0.4   r=0.5   r=0.6
 10   0.000   0.000   0.000   0.052
 20   0.000   0.000   0.015   0.233
 30   0.000   0.000   0.116   0.678
 40   0.000   0.073   0.664   0.944
 50   0.000   0.289   0.851   0.993
 60   0.001   0.520   0.961   0.981
 70   0.064   0.659   0.968   1.000
 80   0.047   0.869   0.972   0.994
 90   0.161   0.828   0.999   0.999
100   0.265   0.847   1.000   1.000
110   0.389   0.943   1.000   1.000
120   0.464   0.990   1.000   1.000
130   0.726   0.996   1.000   1.000
140   0.673   1.000   1.000   1.000
150   0.883   0.996   1.000   1.000
160   0.864   1.000   1.000   1.000
170   0.957   1.000   1.000   1.000
180   0.843   1.000   1.000   1.000
190   0.952   1.000   1.000   1.000
200   0.979   1.000   1.000   1.000

Compile and generate eps:

$ gnuplot connectivity.gnu
Type return to continue


It will generate connectivity.eps.

Using IPA fonts and embedding fonts into pdf

Click here or here to download IPA fonts: ipam.ttf (true-type mincho font) and ipag.ttf (true-type gothic font), and put them in /usr/share/fonts/:

$ ls /usr/share/fonts/ipa-*
/usr/share/fonts/ipa-gothic:
ipag.ttf

/usr/share/fonts/ipa-mincho:
ipam.ttf

Use IPA fonts to generate pdf:

$ dvipdfmx -f ./texfonts.map hello_latex_utf8.dvi

The contents of texfonts.map:

rml  H :0:ipam.ttf
gbm  H :0:ipag.ttf
rmlv V :0:ipam.ttf
gbmv V :0:ipag.ttf

Generated pdf:

The pdffonts command checks the pdf fonts. You can see that the IPA fonts are emdedded in the pdf.

$ pdffonts hello_latex_utf8.pdf
name                                 type              encoding         emb sub uni object ID
------------------------------------ ----------------- ---------------- --- --- --- ---------
HXGJXE+IPAMincho                     CID TrueType      Identity-H       yes yes no       5  0
CZZTSO+CMR10                         Type 1C           Builtin          yes yes no       6  0
DSYLZD+CMR7                          Type 1C           Builtin          yes yes no       7  0
HNPHQZ+IPAGothic                     CID TrueType      Identity-H       yes yes no       9  0
BDCOLT+CMSS10                        Type 1C           Builtin          yes yes no      10  0
JDYPCL+CMSS8                         Type 1C           Builtin          yes yes no      11  0
WXXASS+CMR12                         Type 1C           Builtin          yes yes no      12  0
EXYBTB+CMSS12                        Type 1C           Builtin          yes yes no      13  0
YGGCRX+CMMI12                        Type 1C           Builtin          yes yes no      14  0
SLTHGY+CMSY10                        Type 1C           Builtin          yes yes no      15  0
HYIHVA+CMEX10                        Type 1C           Builtin          yes yes yes     16  0
COBJBH+CMR17                         Type 1C           Builtin          yes yes no      17  0

Or you can check fonts with properties in an opened pdf.


Title, author, abstract, sections, and references

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
%
% platex -kanji=utf8 -shell-escape latex_report.tex
% pbibtex latex_report
% platex -kanji=utf8 -shell-escape latex_report.tex
% platex -kanji=utf8 -shell-escape latex_report.tex
% dvipdfmx -f ./texfonts.map latex_report.dvi
% pdffonts latex_report.pdf
%
\documentclass{article}
\usepackage[dvipdfmx]{graphicx}
\date{\empty}
\renewcommand\tablename{表}
\renewcommand\figurename{図}
\renewcommand\refname{参考文献}

\title{{\LaTeX} による文書作成}
\author{法政\,CIS\,太郎\\
  \ \\
  法政大学 情報科学部 コンピュータ科学科ディジタルメディア学科\\
  Email: tarou.cis.hosei.zz@stu.hosei.ac.jp
}

\begin{document}
\maketitle

\begin{abstract}
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要
摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要摘要。
\end{abstract}

\section{プログラムコード}

You can write program codes like this, this, this, this, this, this, and this:

\begin{verbatim}
/*
 * C program that says "Hello, World!" (hello_world.c)
 */
#include <stdio.h>    // needed to perform IO operations

int main() {                 // program entry point
  printf("Hello, World!\n"); // say Hello, World!
  return 0;                  // terminate main()
}                            // end of main function
\end{verbatim}

\section{図表図表図表図表図表図表図表図表 (Section)}

\subsection{表表表表表表表表 (Sub-section)}

Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.

新しい段落。Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.

\begingroup
\renewcommand{\arraystretch}{1.3}
\setlength{\tabcolsep}{30pt}
\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{align}}}
    \begin{tabular}[t]{l|c|r}\hline
      left left & center center & right right\\\hline
      lef  lef  & cente  cente  & righ  righ \\\hline
      le   le   & cent   cent   & rig   rig  \\\hline
      l    l    & cen    cen    & ri    ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}
\endgroup

\begingroup
\renewcommand{\arraystretch}{1.3}
\setlength{\tabcolsep}{35pt}
\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{multiple}}}
    \begin{tabular}[t]{l|c|r}\hline
      \multicolumn{2}{c|}{hello2} & right right\\\hline\hline
      lef  lef  & cente  cente  & righ  righ \\\hline
      le   le   & cent   cent   & rig   rig  \\\hline
      l    l    & cen    cen    & ri    ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}
\endgroup

\subsection{図図図図図図図図 (Sub-section)}

Figure~\ref{sample} shows an example of figure created with TGIF~\cite{OLSR}.
Figure~\ref{sample} shows an example of figure created with TGIF~\cite{DSDV}.
Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics{figs/tgif_sample.pdf}
    \caption{Figure example generated with tgif{\label{sample}}}
  \end{center}
\end{figure}

Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics[width=1.01\textwidth]{html/figs/tetris3d.pdf}
    \caption{Blocks of 3D Tetris{\label{tetris3d}}}
  \end{center}
\end{figure}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics{figs/connectivity.pdf}
    \caption{MANET connectivity{\label{connectivity}}}
  \end{center}
\end{figure}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\section{物体は地面に向かって落下する --- 重力加速度}

Assume that the initial vertical velocity is 0 at time 0,
and $g=9.8$ is the gravitational acceleration.
The falling vertical velocity $v_y$ at time $t$ is

$$v_y=gt$$

\noindent
The falling vertical distance $s$ at time $t$ is

$$s=\int_0^tv_y\ dt=\int_0^tgt\ dt=\frac{1}{2}gt^2$$

\section{二項定理}

$$(x+y)^i=\sum_{j=0}^{i}\left(
\begin{array}{c} i \\ j \end{array}
\right)x^{i-j}y^{j}$$

$$\left(\begin{array}{c} i \\ j \end{array} \right)
= C_j^i = \,_iC_j = \frac{i!}{j!\,(i-j)!}$$

\section{結び}

結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論
結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論
結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論
結論結論結論結論結論。

新しい段落新しい段落新しい段落新しい段落新しい段落新しい段落新しい段落
新しい段落新しい段落新しい段落新しい段落新しい段落新しい段落新しい段落
新しい段落新しい段落新しい段落新しい段落新しい段落新しい段落。

\bibliographystyle{plain} % references style
\bibliography{refs}       % needs refs.bib

\end{document}

refs.bib:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@article{DSDV,
  title={Highly dynamic destination-sequenced distance-vector
  routing (DSDV) for mobile computers},
  author={Charles E. Perkins and Pravin Bhagwat},
  journal={ACM SIGCOMM computer communication review},
  volume={24},
  number={4},
  pages={234--244},
  year={1994}
}

@inproceedings{OLSR,
  title={Optimized link state routing protocol for ad hoc networks},
  author={Jacquet, Philippe and M{\"u}hlethaler, Paul and Clausen,
  Thomas and Laouiti, Anis and Qayyum, Amir and Viennot, Laurent},
  booktitle={Multi Topic Conference, 2001. IEEE INMIC 2001.
  Technology for the 21st Century. Proceedings. IEEE International},
  pages={62--68},
  year={2001}
}

Compile and generate pdf:

$ platex -kanji=utf8 -shell-escape latex_report.tex
$ pbibtex latex_report
$ platex -kanji=utf8 -shell-escape latex_report.tex
$ platex -kanji=utf8 -shell-escape latex_report.tex
$ dvipdfmx latex_report.dvi

IEEE proceedings format

Click IEEE conference paper format to see a conference paper in IEEE Xplore. Note: To see the pdf, you should access this URL in the campus, or visit it through Hosei VPN (virtual private network). The figures in the paper were drawn with tgif and the graphs were generated with gnuplot.

Extended Abstract format of your graduation research

The CIS graduation research Extended Abstract follows the IEEE Computer Society Proceedings format. There are mainly two files we must use. One is the class file IEEEtran.cls, and the other is the reference format file IEEEtran.bst.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
%
% CIS Extended Abstract Sample (IEEE CS Proceedings Format)
% Usage:
%
% platex -kanji=utf8 -shell-escape extended_abstract.tex
% pbibtex extended_abstract
% platex -kanji=utf8 -shell-escape extended_abstract.tex
% platex -kanji=utf8 -shell-escape extended_abstract.tex
% dvipdfmx -f ./texfonts.map extended_abstract.dvi
% pdffonts extended_abstract.pdf
%
% other encodings:
% platex -kanji=euc  my_thesis_abs.tex
% platex -kanji=sjis my_thesis_abs.tex

\documentclass[a4paper,conference,compsoc]{IEEEtran} % do not modify this line
\usepackage[dvipdfmx]{graphicx}

\renewcommand\tablename{表}
\renewcommand\figurename{図}
\renewcommand\refname{参考文献}

\IEEEoverridecommandlockouts
\def\footnoterule{\hrule width 34mm \kern4.6pt}

\begin{document}

\title{\vskip-10mm\mdseries\mcfamily % do not modify this line
%%%% put the paper title here
法政大学情報科学部卒業論文$\cdot$大学院情報科学研究科修士論文$\cdot$抄録フォーマット
%%%%
\vspace{-3mm}} % do not modify this line

\author{
%%%% put your name, university department/graduate school, and supervisor here
  \IEEEauthorblockN{\normalfont 法政\,CIS\,太郎
    \IEEEauthorrefmark{1}\\Tarou CIS Hosei\\}
  \IEEEauthorblockA{\normalfont 法政大学 情報科学研究科 情報科学専攻
    情報科学部 コンピュータ科学科 ディジタルメディア学科\\
    Email: tarou.cis.hosei.zz@stu.hosei.ac.jp}
  \thanks{\normalfont\IEEEauthorrefmark{1} Supervisor: Prof. A. Someone}
%%%%
\vspace{-4mm}} % do not modify this line

\maketitle

\begin{abstract}
  English English English English English English English English
  English English English English English English English English
\end{abstract}

\section{プログラムコード}

You can write program codes like this, this, this, this, this, this, and this:

\begin{verbatim}
/*
 * C program that says "Hello, World!"
 */
#include <stdio.h>

int main() {
  printf("Hello, World!\n");
  return 0;
}
\end{verbatim}

\section{図表図表図表図表図表図表 (Section)}

\subsection{表表表表表表表表 (Sub-section)}

Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.
Table~\ref{align} shows an example of table.

\begingroup
\renewcommand{\arraystretch}{1.3}
\setlength{\tabcolsep}{22pt}
\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{align}}}
    \begin{tabular}[t]{l|c|r}\hline
      left left & center center & right right\\\hline
      lef  lef  & cente  cente  & righ  righ \\\hline
      le   le   & cent   cent   & rig   rig  \\\hline
      l    l    & cen    cen    & ri    ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}
\endgroup

\begingroup
\renewcommand{\arraystretch}{1.3}
\setlength{\tabcolsep}{23pt}
\begin{table}[h!tb]
  \begin{center}
    \caption{Table example{\label{multiple}}}
    \begin{tabular}[t]{l|c|r}\hline
      \multicolumn{2}{c|}{hello2} & right right\\\hline\hline
      lef  lef  & cente  cente  & righ  righ \\\hline
      le   le   & cent   cent   & rig   rig  \\\hline
      l    l    & cen    cen    & ri    ri   \\\hline
    \end{tabular}
  \end{center}
\end{table}
\endgroup

新しい段落。Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.
Table~\ref{multiple} shows a table where ``hello2'' takes two columns.

\subsection{図図図図図図図図 (Sub-section)}

Figure~\ref{sample} shows an example of figure created with TGIF~\cite{OLSR}.
Figure~\ref{sample} shows an example of figure created with TGIF~\cite{DSDV}.
Figure~\ref{sample} shows an example of figure created with TGIF.
Figure~\ref{sample} shows an example of figure created with TGIF.

\begin{figure}[!hb]
  \begin{center}
    \includegraphics{figs/tgif_sample.pdf}
    \caption{Figure example generated with tgif{\label{sample}}}
  \end{center}
\end{figure}

Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.
Figure~\ref{tetris3d} shows another example of figure created with TGIF.

\begin{figure*}[t!b]
  \begin{center}
    \includegraphics[width=.99\textwidth]{html/figs/tetris3d.pdf}
    \caption{Blocks of 3D Tetris{\label{tetris3d}}}
  \end{center}
\end{figure*}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics[width=\columnwidth]{html/figs/connectivity.pdf}
    \caption{MANET connectivity{\label{connectivity}}}
  \end{center}
\end{figure}

Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.
Figure~\ref{connectivity} shows another example of figure created with gnuplot.

\section{物体は地面に向かって落下する}

Assume that the initial vertical velocity is 0 at time 0,
and $g=9.8$ is the gravitational acceleration.
The falling vertical velocity $v_y$ at time $t$ is

$$v_y=gt$$

\noindent
The falling vertical distance $s$ at time $t$ is

$$s=\int_0^tv_y\ dt=\int_0^tgt\ dt=\frac{1}{2}gt^2$$

\section{二項定理}

$$(x+y)^i=\sum_{j=0}^{i}\left(
\begin{array}{c} i \\ j \end{array}
\right)x^{i-j}y^{j}$$

$$\left(\begin{array}{c} i \\ j \end{array} \right)
= C_j^i = \,_iC_j = \frac{i!}{j!\,(i-j)!}$$

\section{Merge Sort}
Merge sort can be done by divide-and-conquer algorithm.
To sort a subarray array[p..r],
the merge sort uses divide-and-conquer as follows:
\begin{enumerate}
\item Divide by finding the number q of the position midway between p and r.
  Do this step the same way we found the midpoint in binary search:
  add p and r, divide by 2, and round down.
\item Conquer by recursively sorting the subarrays
  in each of the two subproblems created by the divide step.
  That is, recursively sort the subarray array[p..q] and
  recursively sort the subarray array[q+1..r].
\item Combine by merging the two sorted subarrays back into
  the single sorted subarray array[p..r].
\end{enumerate}
An example of merge sort is shown in Figure~\ref{merge-sort-example}.

\begin{figure}[h!tb]
  \begin{center}
    \includegraphics[width=\columnwidth]{html/figs/merge-sort-example.pdf}
    \caption{An example of merge sort{\label{merge-sort-example}}}
  \end{center}
\end{figure}

\section{結び}

結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論
結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論結論

\bibliographystyle{IEEEtran} % references style
\bibliography{refs}          % needs refs.bib

\end{document}

Download figures and put them in the figs folder.

merge-sort-example.obj; open it with tgif
merge-sort-example.eps; generated by tgif
The epstopdf command converts eps to pdf:
$ epstopdf merge-sort-example.eps

Compile and generate pdf:

$ platex -kanji=utf8 -shell-escape extended_abstract.tex
$ pbibtex extended_abstract
$ platex -kanji=utf8 -shell-escape extended_abstract.tex
$ platex -kanji=utf8 -shell-escape extended_abstract.tex
$ dvipdfmx -f ./texfonts.map extended_abstract.dvi

Click to download IEEEtran.zip that contains all the sources for generating both the Extended Abstract and the Thesis.

Click to see An Extended Abstract of a Master Thesis.

Conclusion

Do not use Microsoft WORD when you prepare reports or papers. Use LaTeX!

Exercise

Download cis-thesis.zip and prepare your report/paper/extended abstract/thesis with LaTeX.
